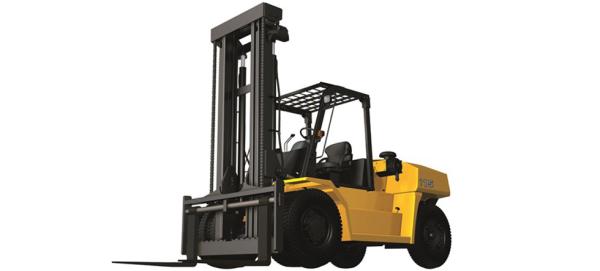

Komatsu EX50 Series IC Pneumatic

Komatsu
Make Komatsu
Model EX50 Series IC Pneumatic
Type IC Pneumatic

How can we help?


Description

Komatsu puts its technologies and know-how into the design and construction of the EX50 engine. With its four key, cutting edge technologies, the engine provides better fuel efficiency, maximum productivity, and lowered operating costs. The wet disc brake system offers increased durability in even the toughest work environments. The EX50’s excellent visibility, operator comfort and ease of operation are all designed to deliver greater operator productivity and efficiency.

Models

specs

General

GENERAL FD100T-8 FD115T-8 FD135T-8 FD160ET-8
Power Type Diesel Diesel Diesel Diesel
Operation Type Sit-Down Sit-Down Sit-Down Sit-Down
Rated Capacity 22,000 lbs 25,000 lbs 30,000 lbs 35,000 lbs
Rated Load Center 24 in 24 in 24 in 24 in
Load Distance, Front Axle to Fork Face 27.4 in 28.1 in 29.1 in 29.5 in
Wheelbase 110.2 in 110.2 in 122 in 122 in

Weight

WEIGHT FD100T-8 FD115T-8 FD135T-8 FD160ET-8
Service Weight 28,620 lbs 31,660 lbs 34,130 lbs 37,920 in
Axle Loading Loaded Front 45,990 lbs 51,790 lbs 58, 310 lbs 66,450 lbs
Loaded Rear 4,670 lbs 5,220 lbs 5,580 lbs 6,750 lbs
Unloaded Front 13,730 lbs 14,530 lbs 15,670 lbs 15,810 lbs
Unloaded Rear 14,880 lbs 17,130 lbs 18,450 lbs 22,110 lbs

Tires

TIRES FD100T-8 FD115T-8 FD135T-8 FD160ET-8
Tire Type Pneumatic Pneumatic Pneumatic Pneumatic
Tire Size Front 9 - 20 - 14PR (I) 10 - 20 - 14PR (I) 11 - 20 - 14PR (I) 12 - 20 - 16PR (I)
Rear 9 - 20 - 14PR (I) 10 - 20 - 14PR (I) 11 - 20 - 14PR (I) 12 - 20 - 16PR (I)
Number of Wheels, Front/Rear 4X / 2 4X / 2 4X / 2 4X / 2
Tread  Front 66.9 in 66.9 in 69.7 in 69.7 in
Rear 74.8 in 74.4 in 74.7 in 73.6 in

Dimensions

DIMENSIONS FD100T-8 FD115T-8 FD135T-8 FD160ET-8
Tilting Angle, Forward/Backward 6 / 12 deg 6 / 12 deg 6 / 12 deg 6 / 12 deg
Mast Height Lowered 113.8 in 124.4 in 124.8 in 129.5 in
Extended 173.2 in 183.9 in 184.3 in 189 in
Free Lift Height 0 in 0 in 0 in 0 in
Standard Lift Height 118 in 118 in 118 in 118 in
Height Overhead Guard 109.4 in 110.2 in 110.6 in 111.4 in
Length, with Standard Forks 215.2 in 216.7 in 230.7 in 237 in
Length to Fork Face 167.1 in 168.7 in 182.7 in 189 in
Overall Width at Drive Tires 89.8 in 90.9 in 94.9 in 97.6 in
Forks, Thickness x Width x Length 3 x 6.7 x 48 in 3 x 7.3 x 48 in 3.1 x 7.3 x 48 in 3.3 x 8.3 x 48 in
Carriage Width/ITA Class 84.3 in / Pin Mount 84.3 in / Pin Mount 86.6 in / Pin Mount 86.6 in / Pin Mount
Ground Clearance, Under Mast 9.8 in 9.8 in 10.2 in 10.6 in
Ground Clearance, Center of Wheelbase 12.8 in 13.6 in 13.8 in 14.6 in
Right Angle Stacking 240.7 in 241.9 in 254.3 in 262.6 in
Turning Radius, Outside 157.5 in 157.9 in 169.3 in 177.2 in

Performance

PERFORMANCE FD100T-8 FD115T-8 FD135T-8 FD160ET-8
Travel Speed, Loaded 1st/2nd/3rd 5.3 / 11.2 / 17.4 mph 5.3 / 11.8 / 17.4 mph 5.6 / 12.1 / 17.1 mph 5.9 / 12.4 / 17.4 mph
Travel Speed, Unloaded 1st/2nd/3rd 5.6 / 12.4 / 19.9 mph 5.6 / 13.0 / 19.9 mph 5.9 / 13.0 / 20.2 mph 6.2 / 13.4 / 20.5 mph
Lifting Speed, Loaded/Unloaded 93 / 98 fpm 85 / 89 fpm 69 / 74 fpm 63 / 68 fpm
Lowering Speed, Loaded/Unloaded 78.7 / 98.4 fpm 78.7 / 98.4 fpm 78.7 / 98.4 fpm 79 / 79 fpm
Maximum Drawbar Pull, Loaded 23,800 lbs 23,300 lbs 22,700 lbs 21,170 lbs
Maximum Gradeability 38% 32% 27% 22%
Service Brake, Operation/Control Foot / Hydraulic, Powered Foot / Hydraulic, Powered Foot / Hydraulic, Powered Foot / Hydraulic, Powered
Parking Brake, Operation/Control Hand / Mechanical Hand / Mechanical Hand / Mechanical Hand / Mechanical
Steering Type Hydraulic Power Steering Hydraulic Power Steering Hydraulic Power Steering Hydraulic Power Steering

Drive

DRIVE FD100T-8 FD115T-8 FD135T-8 FD160ET-8
Engine Manufacturer / Engine Model Komatsu SAA6D107E-1 Komatsu SAA6D107E-1 Komatsu SAA6D107E-1 Komatsu SAA6D107E-1
Rated Output (SAE Net) 164 HP @ 2,200 rpm 164 HP @ 2,200 rpm 164 HP @ 2,200 rpm 164 HP @ 2,200 rpm
Maximum Torque (SAE Net) 424 lb-ft @ 1,600 rpm 424 lb-ft @ 1,600 rpm 424 lb-ft @ 1,600 rpm 575 lb-ft @ 1,600 rpm
# of Cylinders / Displacement 6 / 408 cu in 6 / 408 cu in 6 / 408 cu in 6 / 408 cu in
Fuel Tank Capacity 68.7 US Gallons 68.7 US Gallons 74 US Gallons 74 US Gallons

Other

OTHER FD100T-8 FD115T-8 FD135T-8 FD160ET-8
Battery, Voltage/Capacity 24 V / 80 Ah 24 V / 80 Ah 24 V / 80 Ah 24 V / 80 Ah
Relief Pressure, Maximum 3,118 psi 3,118 psi 3,118 psi 3,118 psi
Hydraulic Tank Capacity 48 US Gallons 48 US Gallons 55 US Gallons 55 US Gallons
Clutch Torque Convertor Torque Convertor Torque Convertor Torque Convertor

Features

  • KOPS Plus Komatsu Operator Presence System - KOPS Plus – standard on the EX50 – locks out lift, lower, tilt and traveling functions when the operator leaves the seat for more than three seconds. They do not resume until the operator returns to the seat and resets the controls. A flashing yellow warning light alerts the operator when the KOPS lock is activated. In addition, the forks cannot be lowered while the key is in the off position.
  • Heavy Duty HPCR System - High pressure compressed fuel is stored in an accumulator chamber called a common rail. The fuel is injected into each cylinder at the proper time by an ECU (electronic controlled unit). This high pressure compression rail system optimizes fuel burn and greatly reduces fuel consumption.
  • Enhanced Operator Visability - Operational visibility is greatly enhanced through improvements of the shape of the top of the counterweight and through an increased distance between the inner mast rails. Rearward visibility has been improved through a downward angle to the top edge of the counterweight. Also, forward visibility has been improved by repositioning the lift chains to the outside rail.
  • Wet Disc Brake System - The EX50 features a standard wet disc brake system that offers improved durability and performance over a traditional drum brake. Due to its dustproof and waterproof enclosed design, the wet disc brake system can deliver high durability, resulting in reduced maintenance costs over time. Regardless of your working conditions, the wet disc brake system can have a positive impact on overall operating costs.
  • Highly Rigid Frame - A highly rigid frame enhances truck durability and load handling performance. Use of a main frame structure that consists of a single piece of thick plate steel provides high rigidity against twisting caused by static steering, turning, or uneven surfaces resulting in excellent truck durability and load-handling performance.
  • Ease of Serviceability - The EX50’s large fuel tank reduces the need for frequent fill-ups and easy-to-see inspection windows show fuel and oil levels. A unique air cleaner automatically ejects airborne dust to reduce clogging of the filter element, thus improving suction efficiency and improving filter element life. A reserve tank for engine coolant keeps the system at a constant level and eliminates the need for frequent refills.
  • Komatsu's Hydraulic Suspension Cab HSC - Komatsu’s HSC mount system raises the operator’s cab from the vehicle chassis with a hydraulic suspension system that absorbs most operational vibration. This greatly helps improve operator comfort to reduce fatigue even during long work shifts.
